How to create a Volume in Netapp GUI Mode 10 easy clicks required

The volume is a logical disk that the system presents to the attached hosts. The Data ONTAP 7.0 features two types of volumes are Traditional and Flexible Volumes. In this article we are going to learn about How to create a Volume in Netapp GUI Mode 10 easy clicks required.

Traditional volumes

The Traditional volumes will behave identically to the volumes in Data ONTAP releases prior to version 7.0. this will combine with the physical layer of storage (the disk & RAID properties) with the logical layer of the filesystem (the containers and the volumes that are used to store files and directories).

Flexible volumes

The Flexible volumes (also called FlexVol volumes) allow us to manage the logical layer of the filesystem independently of the physical layer of Netapp storage.

These multiple flexible volumes can exist with a single separate, physically defined aggregate structure of disks and RAID groups. These flexible volumes contained by the same aggregate share with the physical storage resources, RAID (Redundant Array of Inexpensive disks) configuration, and plex structure of that aggregate.

The flexible volumes represents a significant administrative improvement than traditional volumes. by using multiple flexible volumes it enables us to do the following:

  •  It will perform the administrative and maintenance tasks as backup and restore on  an individual flexible volumes rather than on a single as well as large file system.
  • It will set services like snapshot schedules differently for an individual flexible volumes.
  • It will minimize the interruptions in data availability by taking the individual flexible volumes offline to perform the administrative tasks on them and the other existing flexible volumes can remain in online.
  • It will save time by backing up and restoring individual flexible volumes instead of all the file systems an aggregate contains.

Note: For backward compatibility, volumes created prior to Data ONTAP 7.0 are displayed as traditional volumes in FilerView.

We can create up to 500 flexible volumes and traditional volumes on a single storage system. In addition, the following limits will apply.

  • Traditional volumes: We can have up to the 100 traditional volumes and aggregates combined on a single storage system.
  • Flexible volumes: The only one limit imposed on flexible volumes is the overall systems limit of 500 for all volumes.

For all clusters, these limits may apply to each node individually, so that the overall limits for the pair are doubled.

Now we will see how create a volume in GUI practically.

How to create a Volume in Netapp GUI Mode 10 easy click required

Pre- Requesties before creating a Volume

  • Check the Aggregate Available space

Steps in GUI:

1. Provide the credentials and Click on  Filer View

Filer

2. The Filer View window will open is as follows

Filer-View

3. Expand Volumes and click on Add

Volume-Add

4. In Volume Wizard Click Next

Volume-wizard

5. Here we have to select the Volume type which we want to create (Select as Flexible)

volume-type-selection

Brief Description on cache Volume:

The Cache volumes (also known as FlexCache) allows us to keep the copies of primarily read-only files and on multiple filers to reduce the overhead caused by distance limitations or by the bandwidth.  A flexible volume or traditional volume is needed as primary copy on an remote host.

The cache volumes can be created that reference the primary copy or remote volume, and to store their own copy locally to reduce the access latency.  There are 2 primary usage scenarios:

  1. The origin filer is located far away : The usage in this situation will reduce the overhead caused by trying to access the data that is far away and may take a long time to get there.
  2. The origin filer experiences too much traffic: The usage in this situation is used to reduce the bottleneck of the filer, since the throughput is limited.

Before a volume can be added using this wizard you need to make sure that:

  • FlexCache license is required on both the origin and FlexCache filers to create a Cache volume.
  • Origin filer requires option.flexcache.enable set to on.
  • The origin server needs to set option.flexcache.access to specify all caching filers.

You can create up to 500 flexible volumes and traditional volumes on a single storage system. In addition, the following limits apply.

  • Traditional volumes:  we can have up to 100 traditional volumes and aggregates combined on a single storage system.
  • Flexible volumes: The only limit imposed on flexible volumes is the overall system limit of 500 for all volumes.
  • Cache volumes: You can have up to 100 cache volumes.

6. Here we have to provide the Volume Name, Language, snaplock and UTF-8. But provide only the Volume name remaining keep it as default.

volume-parameters

Note:

We must follow the naming conventions for volume name

  • Begins with either a letter or an underscore ( _ )
  • Uses only letters, digits, and underscores.
  • Uses no more than 249 characters.
  • Volume names must be in ASCII characters.

Language

  • It specifies the language that we want to use on this volume. The default language is the same as that set for the root volume.
  • Note: It is strongly recommends that all volumes will have the same language as the root volume, and it will set the volume language at the of volume creation only. By changing the language of an existing volume it can cause some files to become inaccessible.

UTF-8

Select this option to use UTF-8 as the NFS character set

SnapLock Volume

If you want to create this snaplock volume select the checkbox. ” what exactly snaplock volume is describes as follows”

The term “SnapLock volume” is used to describes the volumes that can contain Write-Once-Read-Many (WORM) data, in fact SnapLock is an attribute of the volume’s containing aggregate. Any type of volume like flexible or traditional, contained by a SnapLock aggregate is by definition a SnapLock Volume.

if we want to create a FlexVol that uses SnapLock, you must already have a SnapLock aggregate of the appropriate type (SnapLock Compliance or SnapLock Enterprise) with sufficient space to contain the new FlexVol. If such a SnapLock aggregate is not available, you will not be able to create the new SnapLock volume.

If you want to create a traditional volume that uses SnapLock, the traditional volume is so tightly bound to its aggregate that you can create the traditional volume and its aggregate in one operation. You do not need to have a SnapLock aggregate available.

7. Provide the aggregate and Volume Type and click on Next

flexible-volume-parameters

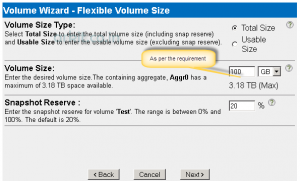

8. Here Provide the Volume Size, Type & Snapshot Reserve Space

volume-size

Note

Here we have to provide the size type as “Total Size” ; Volume size is in  (TB/GB/MB/KB); Snapshot reserve space “if the volume is using for any snapshots/ replication we have to provide some % of space” (In further topics we will discuss on snapshot)

9. Click on Commit

commit

10. Click on Close

close

If you have any technical questions about this tutorial OR any other tutorials on this site, if you require any topic please send us a feedback by commenting.
