clone virtual machine without vCenter using ESXi

How to clone virtual machine without vCenter using ESXi base host machine, First think why we required to clone the virtual machine..? If we would like to make multiple virtual machines as same exact virtual machine.

  Connect to the vSphere Hypervisior using vSphere client and power off the source virtual machine.

How to clone virtual machine without vCenter using ESXi

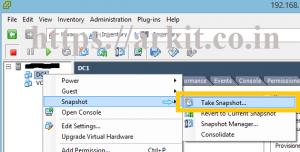

In order to clone first take snapshot of existing virtual machine to do that, Right click on the current virtual machine –> Snapshot –> Take Snapshot. Example is shown in below screenshot



0 Take Snapshot

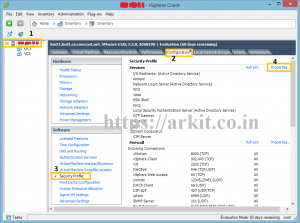

Now Select the base host name and go to configuration tab –> Click on Security profile ( As shown in below screenshot )

1 Security Profile

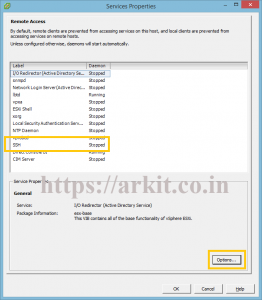

Select SSH and Click on Options

2 Remote access

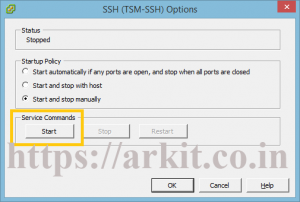

Start the SSH service to connect ESXi using Command line interface ( Refer Below screenshot )

3 Start SSH service

Start SSH service – Click on Ok

Note: You have to shutdown the Virtual Machine before you run vmkfstools command

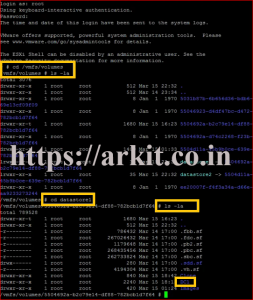

Login to the ESXi host command line interface using SSH service as root user (Below is the screenshot after login to the Command line interface)

4 cd datastore

Go to /vmfs/volumes/ directory and type ls -la for viewing the list of volues

# cd /vmfs/volumes/
# ls -la

Clone the disk file. To clone disk use below command

# vmkfstools -i /vmfs/volumes/datastore1/DC1/DC1-00001.vmdk /vmfs/volumes/datastore1/newclone.vmdk -d thin

5 Clone Disk

Now lets create an New Virtual machine with cloned disk

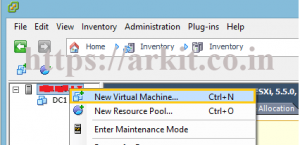

6 New virtual machine

Right Click on ESXi base host machine name and Click on New virtual Machine OR press Ctrl+n (As shown in above screenshot)

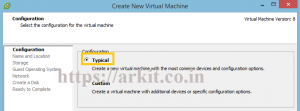

7 configuration typical

Now it will ask you which type of VM you would like to create (Next Step)

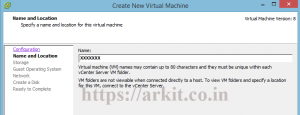

8 Name and location

Provide Virtual machine name

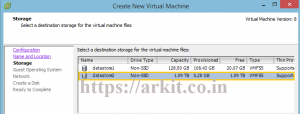

9 Select Storage

Select the Datastore where you would like to store your Virtual machine files

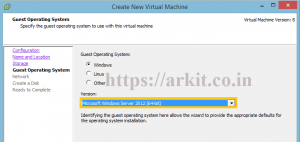

10 Guest Operating system

Select Guest Operating system (Windows, Linux Or Other)

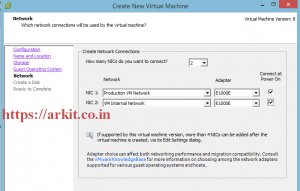

11 Select VM Network

Now select How many NIC’s you want to create and Select the virtual machine NIC VLAN

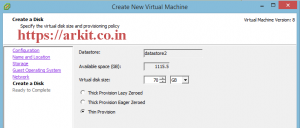

12 Create Disk

Provide Disk size and select its type of provisioning preferred is thin

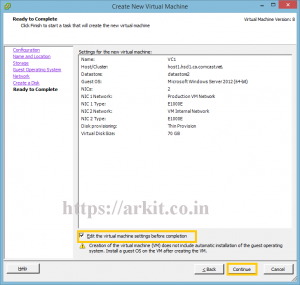

13 Ready to complete

Check Edit the virtual machine settings and click continue

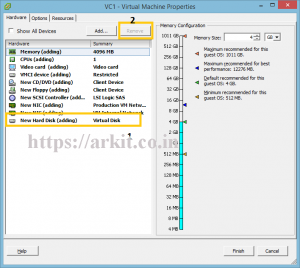

14 Remoce existing disk

Select curent disk–> Click on remove. Remove existing Disk because we do not required. Add newly cloned disk to make this virtual machine as exact its parent

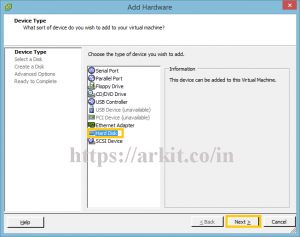

16 Hard Disk

click on add button to attach new one, Select Hard Disk Click Next

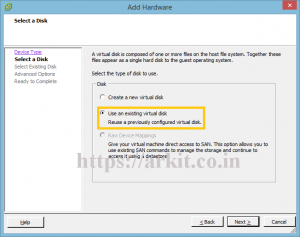

17 Use an Existing Virtual Disk

Select second option that is “Use an existing virtual disk” Click Next

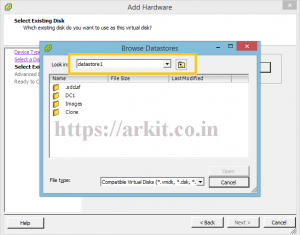

18 Browse from Datastore

Browse datastore and select the new .vmdk file Click open then Click Next

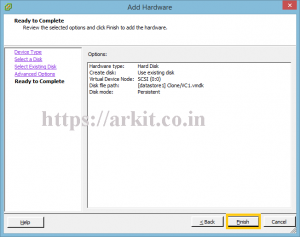

clone virtual machine

Click Finish

That’s it Virtual machine successfully cloned.

Conclusion

We can also clone virtual machine using ESXi.

We would like here your feedback, is this useful for you..?

Thanks for your wonderful Support and Encouragement

blank

ARK

My Name is ARK. Expert in grasping any new technology, Interested in Sharing the knowledge. Learn more & Earn More

6 Responses

  1. You have skipped one important step – you need to shutdown the VM before you could use the vmkfstools as Virtual machine disk files are locked while in-use by a running virtual machine.

  2. blank John A Lauro says:

    The below has worked in 3.x, and still works in 6.x and I think is a little easier…

    First, shutdown the vm, browse the datastore in the client (should be on summary tab of the vm and right click and pick browse, or get to it from host config or summary). Then browse to it on the left so all the files are on the right. Select all and right click and pick copy. Then navigate to root on the left panel and right click on right for new folder. Go into the folder and then on the right click paste. After the copy is complete, right click on the .vmx file and pick add to inventory, put in a name and take the defaults… and that is it.

    PS: The nice thing about cloning with vcenter (if you have vcenter) is you can do it without the shutdown (for a crash consistent copy).

  3. blank Alexey Stromilov says:

    Using Extrasphere 2.0 you can clone running VM to the same or another ESXi host (including free licensed) with or without shared storage… and it’s free.
